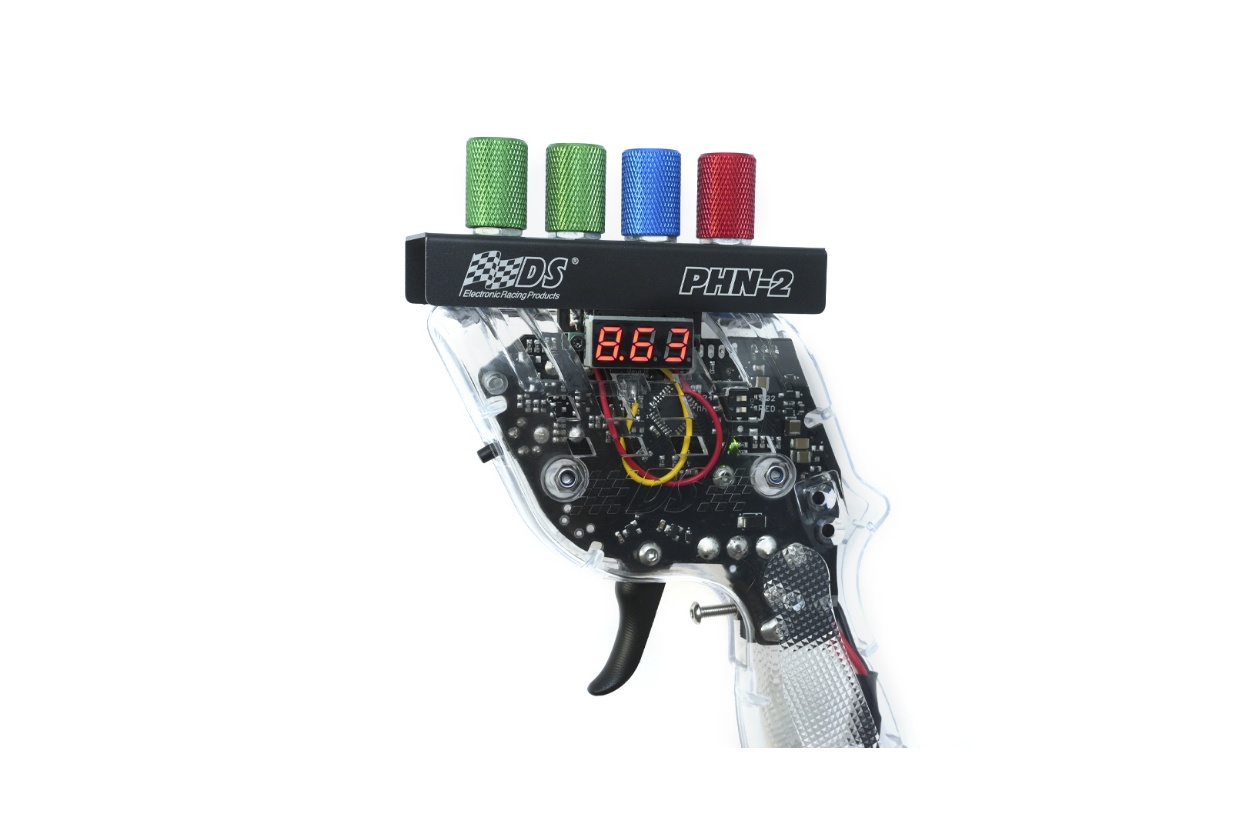

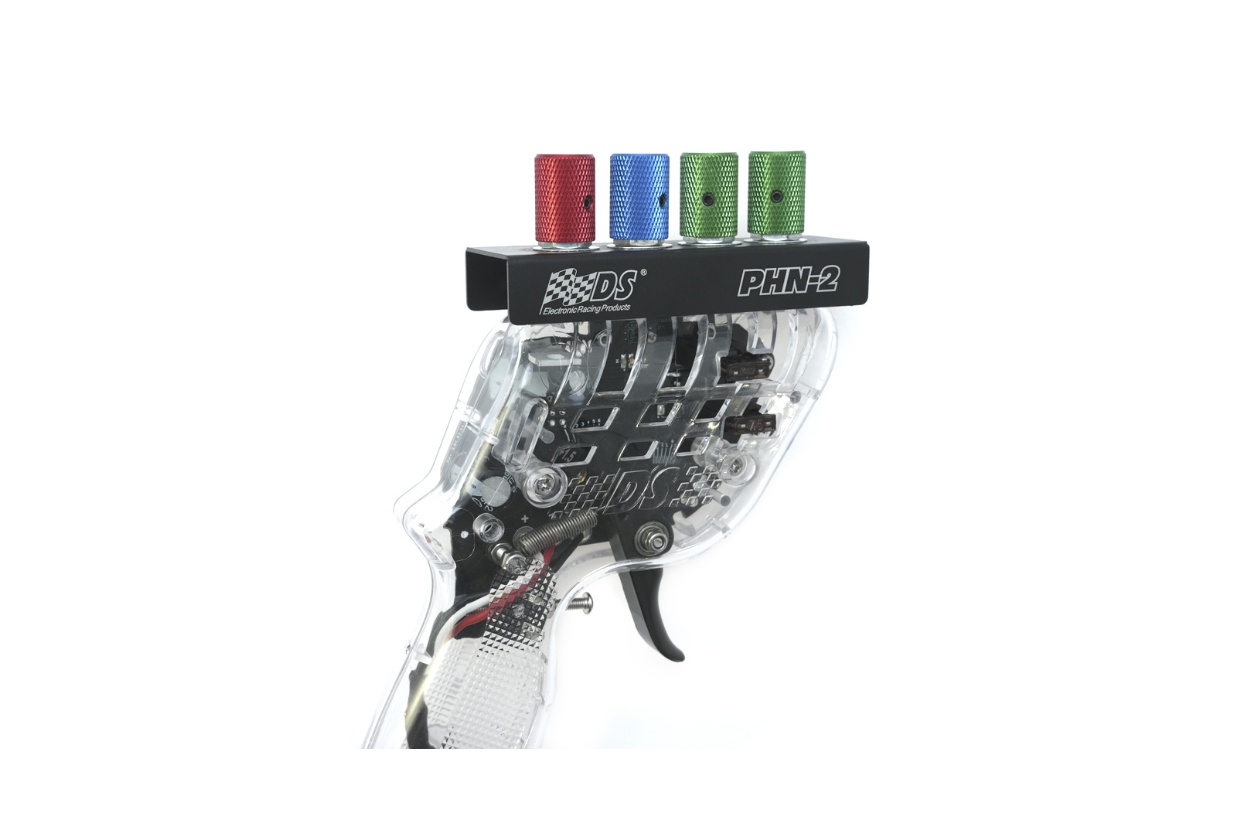

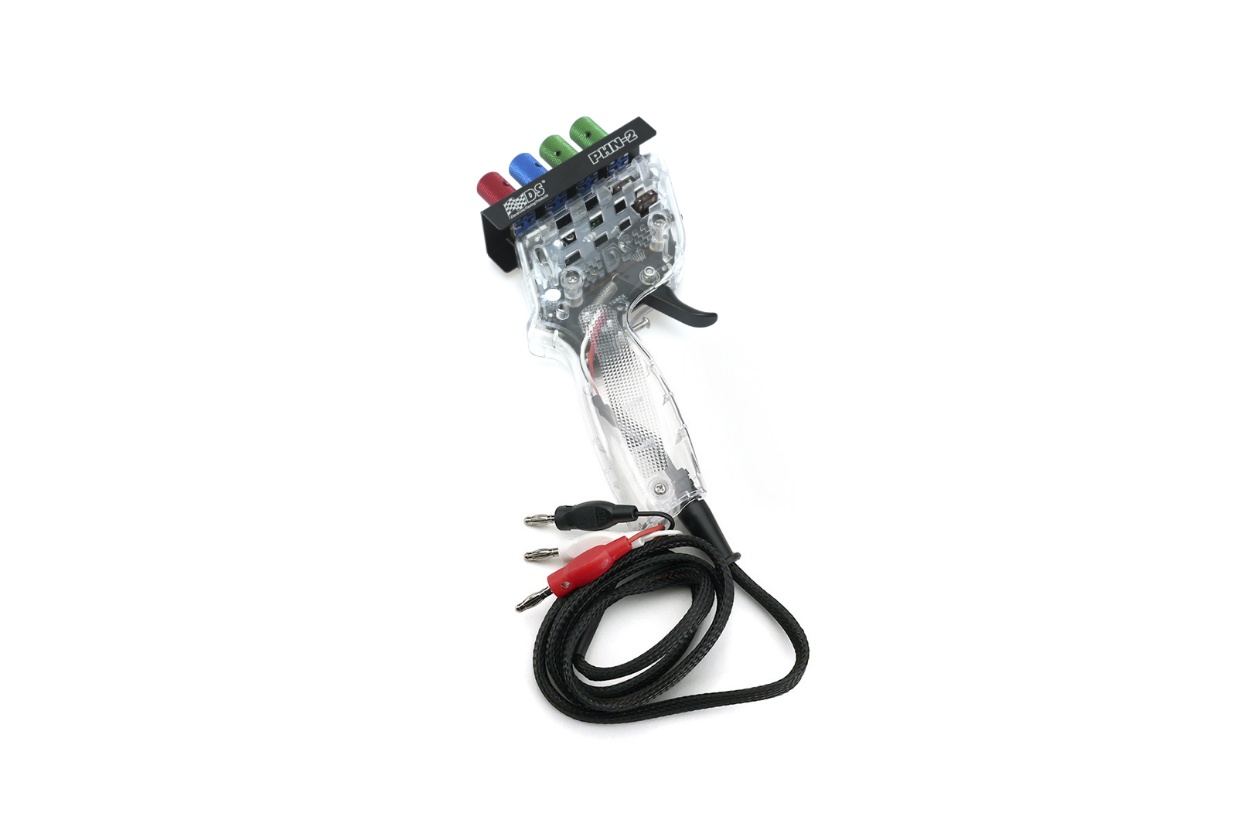

PHN-02 Electronic Slot Car Controller with Voltage Regulator
A fully electronic, PWM-based controller featuring dual potentiometers for sensitivity and braking.
Key features:
– Smooth trigger operation via magnetic sensors.
– Ball bearings integrated into the trigger mechanism.

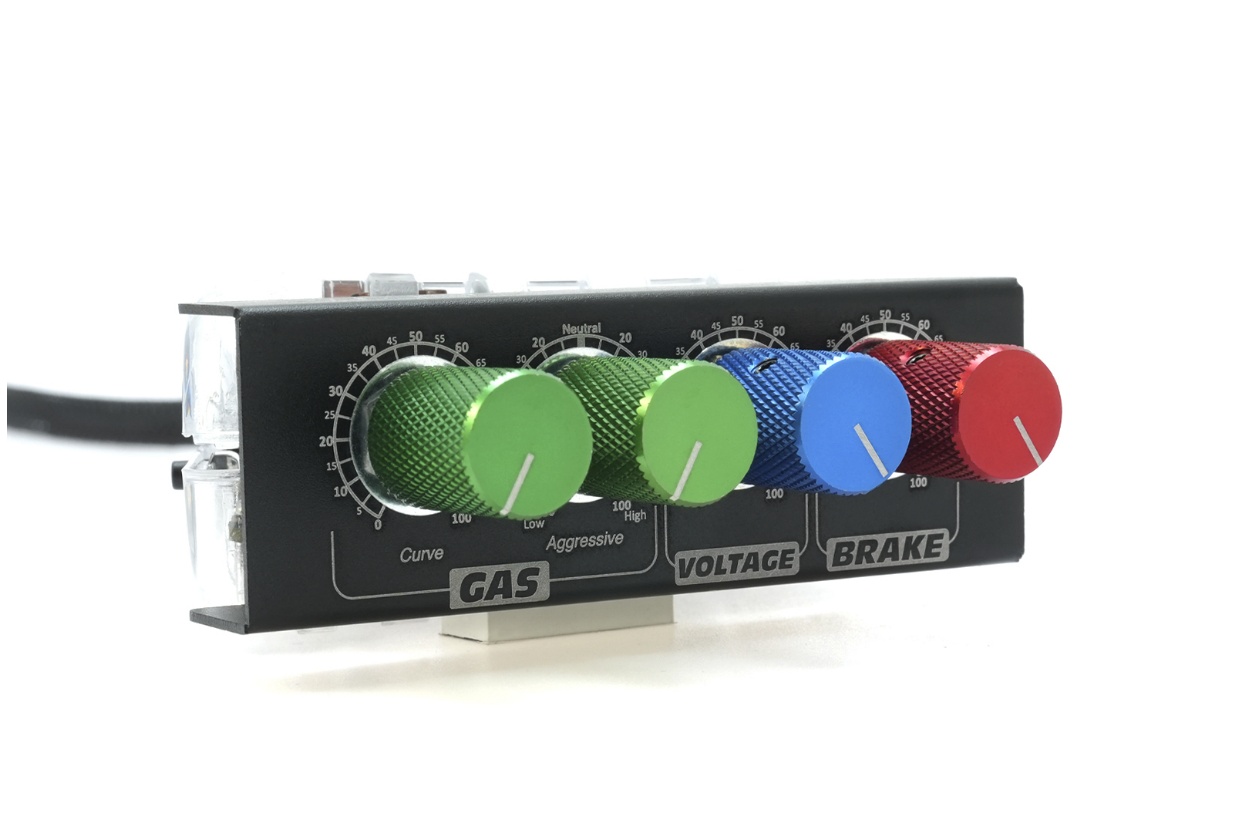

– Dual sensitivity adjustment potentiometers:
Base power curve adjustment.
Curve aggressiveness adjustment (to soften or sharpen the power curve).
– Brake adjustment potentiometer.
– Fine-tuning voltage potentiometer (for voltage reduction, down to 70% of the input voltage).
– Side-mounted “emergency brake” button (cuts all connection to the track, bringing the car to a stop as quickly as possible).
– Power curve selector for 1/32 and 1/24 scale models.
– Voltage mode selector: FULL (full voltage output) and RED (reduced voltage output).
– Flexible, sheathed cable.

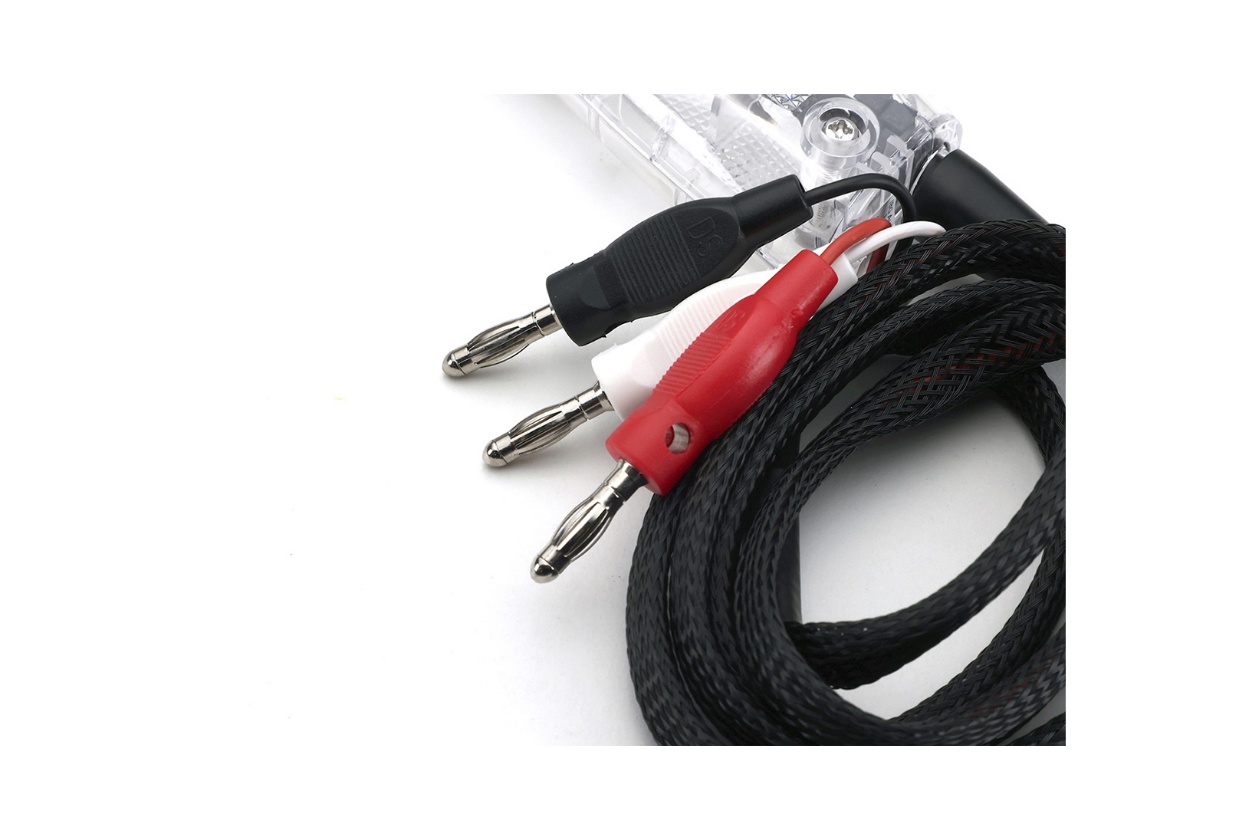

– Includes 4mm banana plugs.
– Operating voltage range: 8V to 22V (maximum).
